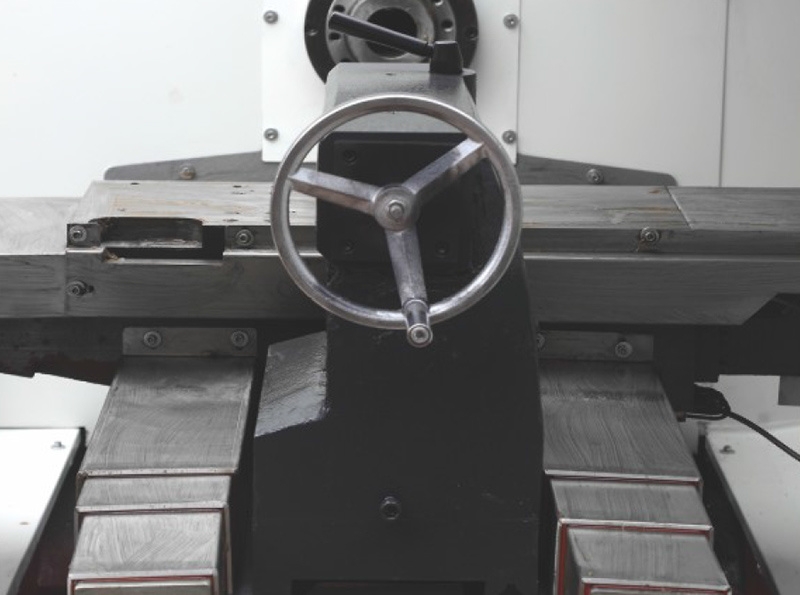

WH6136-600 Overall Horizontal Rail

High processing accuracy and stable processing quality

Key words:

Classification:

hard rail

Keyword： WH6136-600 Overall Horizontal Rail

E-mail:

1300552380@qq.com

Message

Product Details

WH6136-600 Overall Horizontal Rail Main Specifications

Name	Item	Unit	Parameter
Working Capacity	Maximum Spindle Diameter	mm	400
	Maximum Diameter on Slide Plate	mm	230
	Distance Between Two Centers	mm	600
	Total Width of Bed Guide Rail	mm	400
Spindle	Spindle Head Type	GB	A2-6
	Spindle Through Hole Diameter	mm	56/68
	Maximum Spindle Speed	r/min	3000
Main Motor	Main Motor Power	Kw	5.5
X-axis Screw	FD3208	mm	670
Z-axis Screw	FD4008	mm	1100
X/Z Axis	X/Z Axis Stroke	mm	350/700
X/Z Axis	X/Z Axis Rapid Move Speed	m/min	12/12
X Linear Rail	Taiwan Hiwin Rail HGH30CA	mm	800
Z Linear Rail	Taiwan Hiwin Rail HGH35CA	mm	1200
Tool Holder	Tool Bar Cross Section Size	mm	25X25
Tailstock	Sleeve Diameter	mm	70
	Effective Stroke of Sleeve	mm	150
	Tailstock Sleeve Taper Hole		MT5
	Tailstock Sleeve Taper Hole		MT5
Size	Overall Dimensions (Length x Width x Height)	mm
Weight	Net Weight (Approx.)	Kg

List of Main Spindle Components

Name	Size and Specifications	Place of Origin/Manufacturer
Front Bearing of Spindle	7218	Domestic
Rear Bearing of Spindle	7216	Domestic
X-axis Screw	FD3208	Qidong, Jiangsu
Z-axis Screw	FD4008	Qidong, Jiangsu
X-axis Linear Rail	HGH30	Taiwan Hiwin
X-axis Linear Rail	HGH35	Taiwan Hiwin
X-axis Fixed End Bearing	760205 Flange	Domestic
Z-axis Fixed End Bearing	760205	Domestic
X-axis Drive Motor	130
Z-axis Drive Motor	130

Note: For the above brands, if there are inconveniences caused by suppliers (such as delivery delays, price adjustments, products not meeting requirements, etc.), our company may consider using other equivalent brands.
