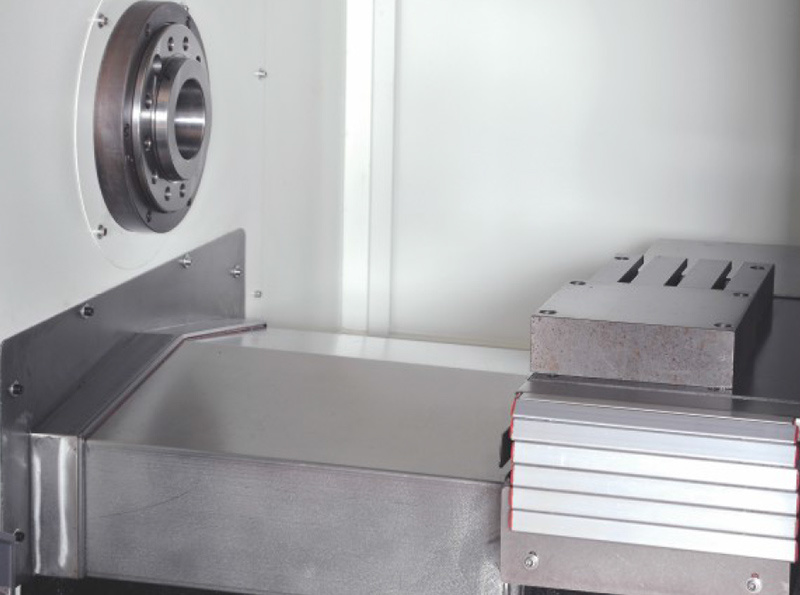

CK6150 Overall Flat Hard Rail

High processing accuracy and stable processing quality

Key words:

Classification:

hard rail

Keyword： CK6150 Overall Flat Hard Rail

E-mail:

1300552380@qq.com

Message

Product Details

CK6150 Overall Flat Hard Rail Main Specifications

Name	Item	Unit	Parameter
Working Capacity	Maximum Spindle Diameter	mm	500
	Maximum Diameter on Slide Plate	mm	340
	Distance Between Two Centers	mm	1400
	Total Width of Bed Guide Rail	mm	450
Spindle	Spindle Head Type	GB	A2-8
	Spindle Through Hole Diameter	mm	82
	Maximum Spindle Speed	r/min	2500
Main Motor	Main Motor Power	Kw	7.5
X-axis Screw	FL3208	mm	780
Z-axis Screw	FL4008	mm	1800
X/Z Axis	X/Z Axis Stroke	mm	450/1300
X/Z Axis	X/Z Axis Rapid Travel Speed	m/min	12/12
Tool Holder	Tool Bar Cross Section Size	mm	25X25

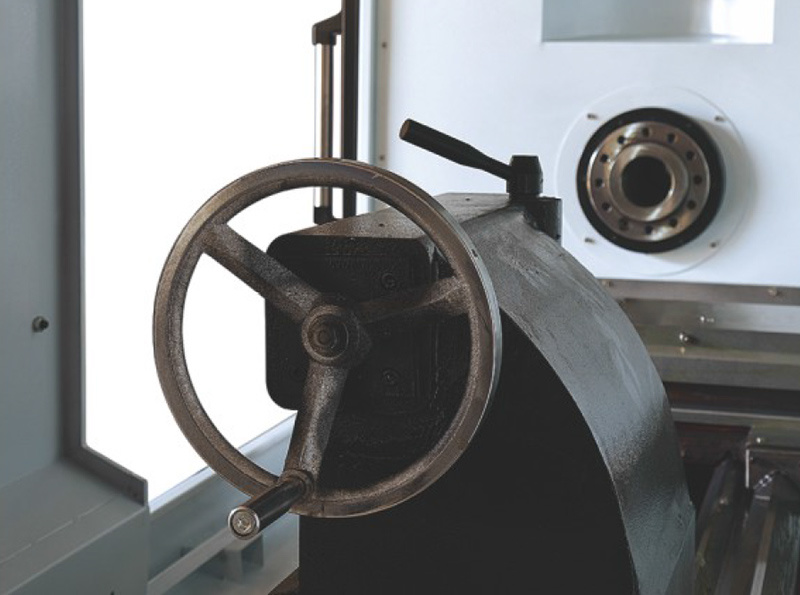

Tailstock	Sleeve Diameter	mm	75
	Effective Stroke of Sleeve	mm	150
	Tailstock Sleeve Taper Hole		MT5
Size	Overall Dimensions (Length x Width x Height)	mm	3000x1600x1800
Weight	Net Weight (Approx.)	Kg

List of Main Spindle Components

Name	Size and Specifications	Place of Origin/Manufacturer
Front Bearing of Spindle	7024TBB	Domestic
Rear Bearing of Spindle	7022DB	Domestic
X-axis Screw	FL3208	Qidong, Jiangsu
Z-axis Screw	FL4008	Qidong, Jiangsu
X-axis Fixed End Bearing	760205 Flange	Domestic
Z-axis Fixed End Bearing	760205	Domestic
X-axis Drive Motor	130
Z-axis Drive Motor	130

Note: For the above brands, if there are inconveniences caused by suppliers (such as delivery delays, price adjustments, products not meeting requirements, etc.), our company may consider using other equivalent brands.
