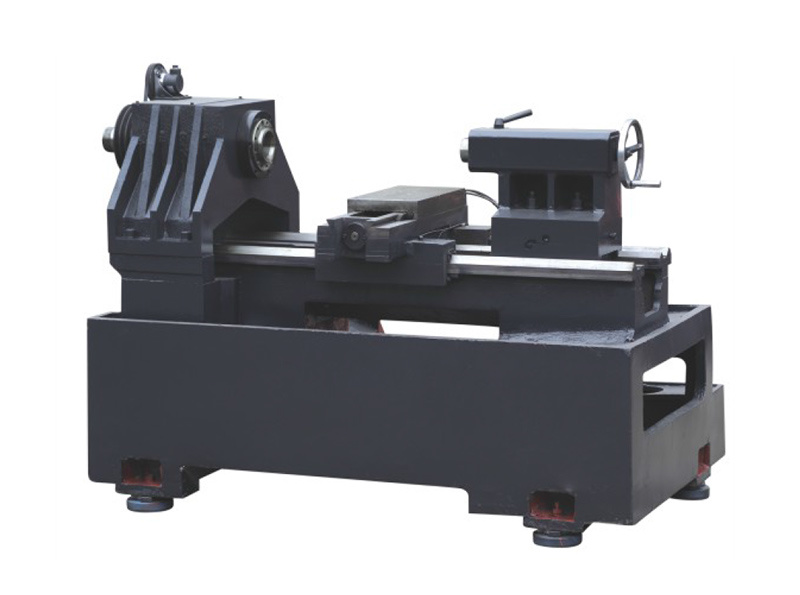

CK6136-600 overall flat hard rail

High processing accuracy and stable processing quality

Key words:

Classification:

hard rail

Keyword： CK6136-600 overall flat hard rail

E-mail:

1300552380@qq.com

Message

Product Details

CK6136-600 Overall Hard Rail Main Specifications

Name	Item	Unit	Parameter
Working Capacity	Maximum Spindle Diameter	mm	400
	Maximum Diameter on Slide Plate	mm	230
	Chuck Size	in	8
	Distance Between Centers	mm	600
	Total Width of Bed Guide Rail	mm	400
Spindle	Spindle Head Type	GB	A2-6
	Spindle Through Hole Diameter	mm	56/68
	Maximum Spindle Speed	r/min	3000
Main Motor	Main Motor Power	Kw	5.5
X-axis Lead Screw	FD3208	mm	670
Z-axis Lead Screw	FD4008	mm	1100
X/Z Axis	X/Z Axis Stroke	mm	350/700
X/Z Axis	X/Z Axis Rapid Feed Speed	m/min	12/12
Tool Holder	Tool Bar Cross Section Size	mm	25X25
Tailstock	Sleeve Diameter	mm	70
	Effective Stroke of Sleeve	mm	150
	Tailstock Sleeve Taper Hole		MT5
Size	Overall Dimensions (Length x Width x Height)	mm
Weight	Net Weight (Approx.)	Kg

List of Main Spindle Components

Name	Size and Specifications	Place of Origin/Manufacturer
Front Bearing of Spindle	7218	Wuxi Sanli
Rear Bearing of Spindle	7216	Wuxi Sanli
X-axis Lead Screw	FD3208	Jiangsu Qidong
Z-axis Lead Screw	FD4008	Jiangsu Qidong
X-axis Fixed End Bearing	760205 Flange	Wuxi Sanli
Z-axis Fixed End Bearing	760205	Wuxi Sanli
X-axis Drive Motor	130
Z-axis Drive Motor	130

Note: The above brands may be replaced with other equivalent brands at the discretion of the company due to supplier-related inconveniences (such as delivery delays, price adjustments, product not meeting requirements, etc.).
