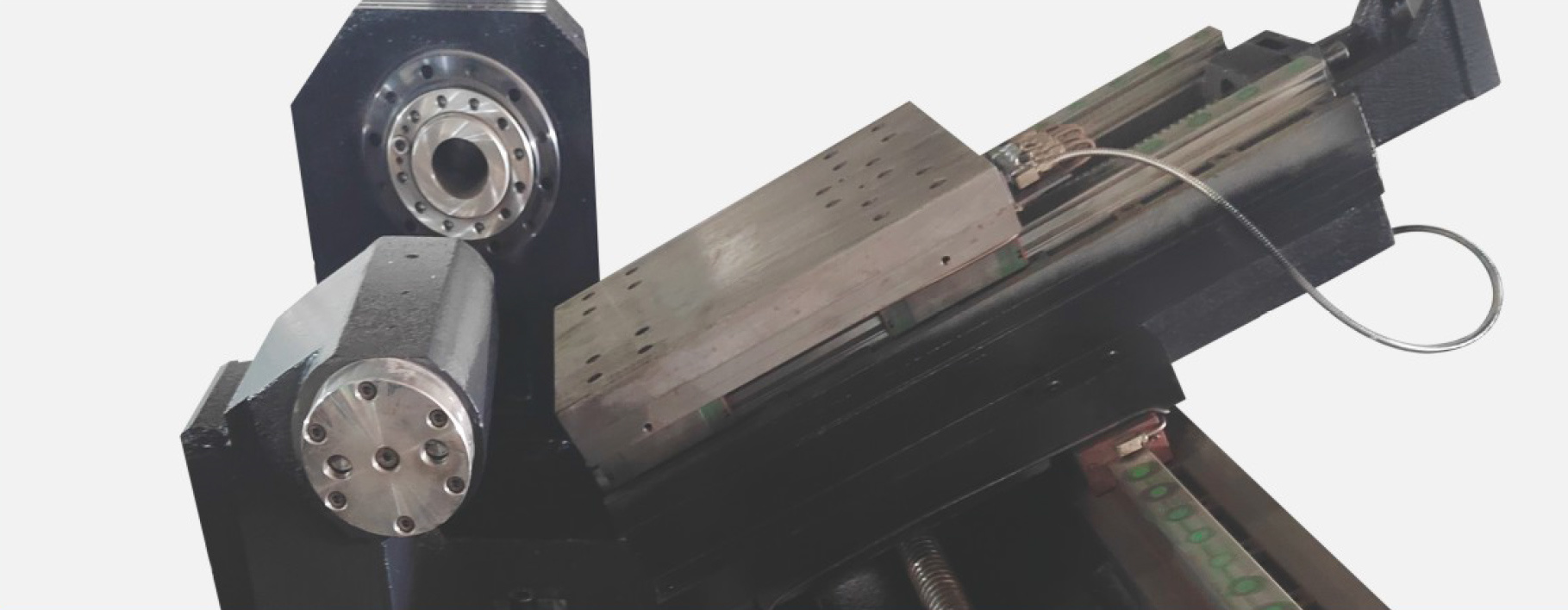

WH6025-600 overall inclined 30-degree tailstock linear guide

High processing accuracy and stable processing quality

Key words:

Classification:

Linear guide

Keyword： WH6025-600 overall inclined 30-degree tailstock linear guide

E-mail:

1300552380@qq.com

Message

Product Details

WH6025-600 overall inclined 30 degrees tailstock linear guide main specifications

Name	Item	Unit	Parameter
Operating capacity	Maximum turning diameter of the bed	mm	500
	Maximum turning diameter on the sliding plate	mm	250
	Distance between two centers	in	800
	Total width of bed guide	mm	385
Spindle unit 170*300	Spindle head type	GB	A2-6
	Spindle through hole diameter	mm	56
	Maximum spindle speed	r/min	4500
Main motor	Main motor power	Kw	7.5
X/Z axis	X/Z axis stroke	mm	260/800
	X/Z axis rapid traverse speed	m/min	12/12
	X/Z axis drive motor torque	NM	7.5/7.5
X linear guide	Taiwan Hiwin guide HGH35CA	mm	600 (turret type)
Z linear guide	Taiwan Hiwin guide HGH45CA	mm	1300 (turret type)
X-axis screw	FD3208	mm	590
Z-axis screw	FD4008	mm	1200
Tool holder	Tool holder type		Turret
	Tool rod cross-section size	mm	25X25
	Boring tool rod diameter	mm	φ20
Tailstock	Sleeve diameter	mm	80
	Sleeve stroke	mm	100
	Tailstock sleeve taper hole		MT5
Accuracy	X-axis repeat positioning accuracy	mm	0.01
	Z-axis repeat positioning accuracy	mm	0.01
	Processing accuracy	mm	IT6-IT7
Size	Overall dimensions (Length x Width x Height)	mm	250017501750
Weight	Net weight (approx)	Kg

List of main spindle components

Name	Dimensions and specifications	Place of origin/Manufacturer
Spindle unit	170	Wuxi
X-axis screw	FD3208	Tailstock
Z-axis screw	FD4008	Tailstock
X-axis drive motor	130
Z-axis drive motor	130
Spindle drive motor	7.5KW
X-axis fixed end bearing	760205	Wuxi Sanli
Z-axis fixed end bearing	760205	Wuxi Sanli

Note: For the above brands, if there are inconveniences caused by suppliers (such as delivery delays, price adjustments, products not meeting requirements, etc.), our company may consider using other equivalent brands.
