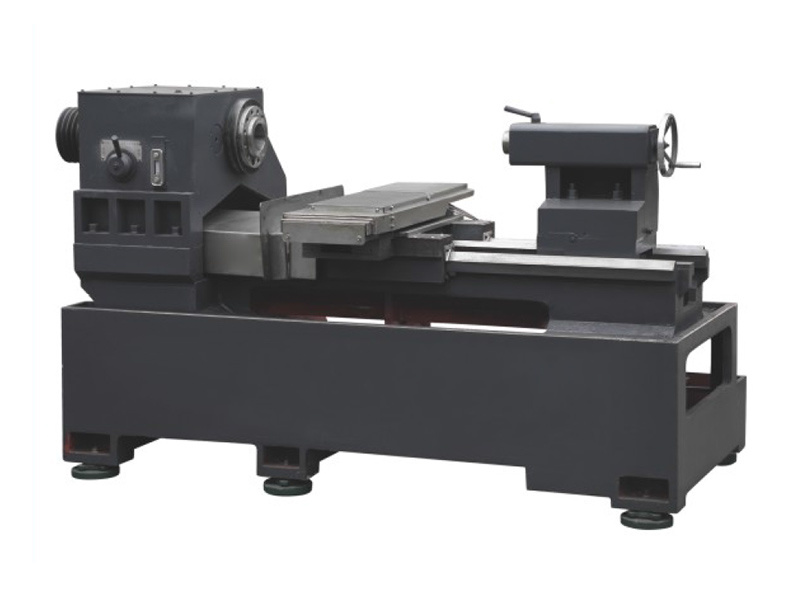

CK6150 Overall Hard Rail Gearbox

High processing accuracy and stable processing quality

Key words:

Classification:

hard rail

Keyword： CK6150 Overall Hard Rail Gearbox

E-mail:

1300552380@qq.com

Message

Product Details

CK6150 Overall Hard Rail Gearbox Main Specifications

Name	Item	Unit	Reference
Working Capacity	Maximum Spindle Diameter of Bed	mm	500
	Maximum Spindle Diameter on Slide Plate	mm	340
	Distance Between Two Centers	mm	1400
	Total Width of Bed Guide Rail	mm	450
Spindle	Spindle Head Type	GB	A2-8
	Spindle Through Hole Diameter	mm	82
	Maximum Spindle Speed	r/min	Low Speed Gear 50-1000 / High Speed Gear 50-2000
Main Motor	Main Motor Power	Kw	7.5
X-axis Screw	FL3208	mm	780
Z-axis Screw	FL4008	mm	1800
X/Z Axis	X/Z Axis Stroke	mm	450/1300
X/Z Axis	X/Z Axis Rapid Traverse Speed	m/min	12/12
Tool Holder	Tool Bar Cross Section Size	mm	25X25
Tailstock	Sleeve Diameter	mm	75
	Effective Stroke of Sleeve	mm	150
	Tailstock Sleeve Taper Hole		MT5
Size	Overall Dimensions (Length x Width x Height)	mm	3000x1600×1800
Weight	Net Weight (Approx.)	Kg

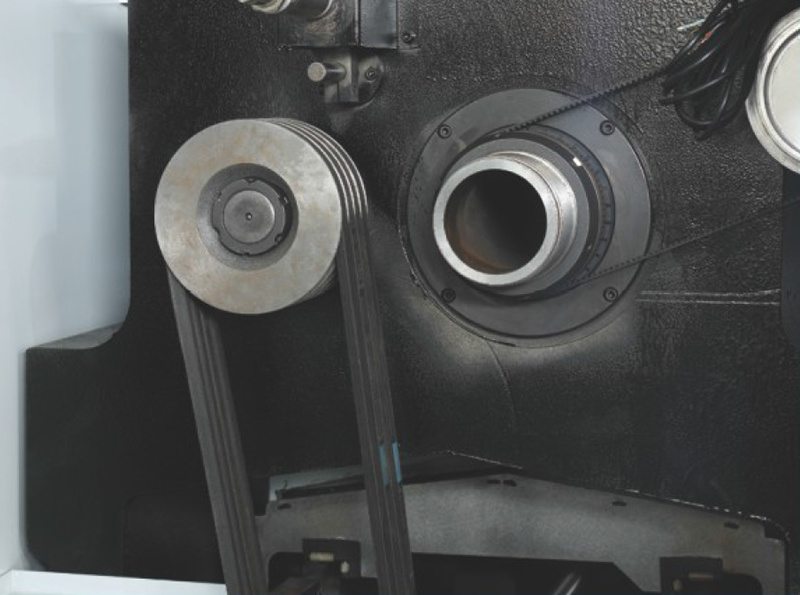

List of Main Components of Spindle

Name	Size and Specifications	Place of Origin/Manufacturer
Front Bearing of Spindle	7024TBB	Domestic
Rear Bearing of Spindle	7022DB	Domestic
X-axis Screw	FL3208	Qidong, Jiangsu
Z-axis Screw	FL4008	Qidong, Jiangsu
X-axis Fixed End Bearing	760205 Flange	Domestic
Z-axis Fixed End Bearing	760205	Domestic
X-axis Drive Motor	130
Z-axis Drive Motor	130

Note: For the above brands, if there are inconveniences caused by suppliers (such as delivery delays, price adjustments, products not meeting requirements, etc.), our company may consider using other equivalent brands.
